| TL;DR — Quick Answer
An indoor LED video wall in a corporate lobby works when four decisions are made correctly: pixel pitch matched to how close staff and visitors actually stand, size and aspect ratio matched to the wall and ceiling height, brightness and colour calibrated for the lobby’s real lighting rather than a showroom demo, and a content management system the front-desk or marketing team can actually update themselves. Done well, the wall becomes the first thing a visiting client, partner or interviewee notices, reinforcing brand identity before anyone says a word. Get any one of those four wrong — too coarse a pitch for a close viewing distance, a screen sized to the budget rather than the wall, or content nobody bothers to refresh — and an expensive installation ends up looking like an oversized, static monitor. Smart One Technologies has planned and delivered indoor LED video wall installations for corporate lobbies, boardrooms and reception areas across Lahore, applying the same specification process on every project. |
Why a Corporate Lobby Is a Different Design Problem

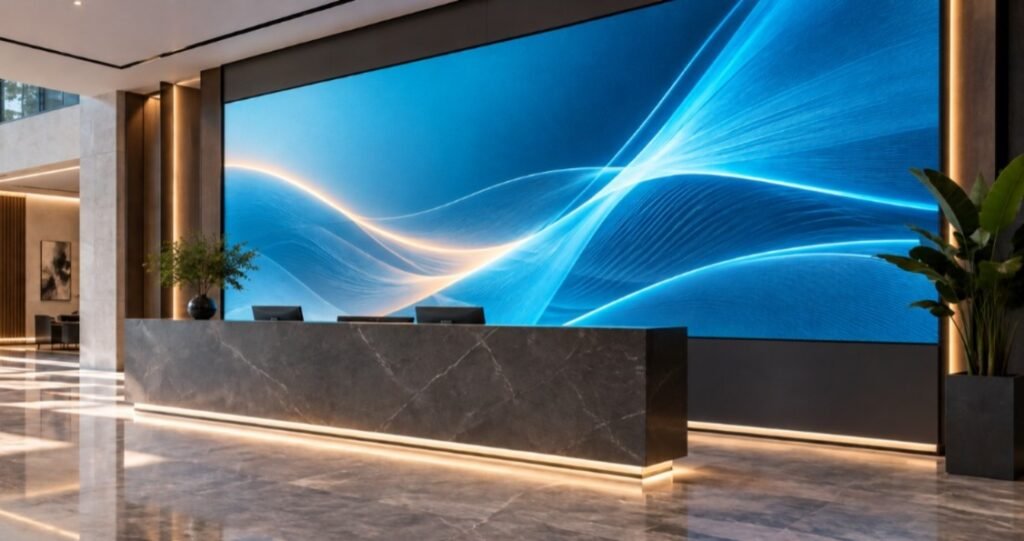

A lobby is not a boardroom, and it is not a retail storefront, though an indoor LED video wall project can borrow lessons from both. The wall has to work for a receptionist who walks past it fifty times a day, a job candidate seeing it for the first time, and a client waiting five minutes before a meeting. It usually sits close to where people actually stand, under whatever daylight the entrance brings in, and it has to look intentional rather than bolted on.
That combination of close viewing distance, variable daylight and a brand-first purpose is what separates a lobby installation from other indoor LED video wall applications, and it is why the specification process for this specific space deserves its own attention rather than a generic display recommendation.
The Four Decisions That Make or Break a Lobby Video Wall
1. Pixel Pitch Matched to Real Viewing Distance
Pixel pitch, the distance between individual LEDs, decides how close a viewer can stand before pixels are visible rather than a smooth image. A corporate lobby is a close-viewing environment by nature, since staff and visitors regularly stand or sit within a few metres of the wall, so lobby installations generally lean toward finer pitches than an event stage or a large auditorium screen would need.
| Pixel Pitch | Typical Viewing Distance | Best Fit For |
| P1.5 – P1.8mm | Under 3 metres | Executive lobbies, boardrooms, brand walls viewed up close |
| P2.0 – P2.5mm | 3 – 6 metres | Standard corporate reception areas, the most common lobby choice |
| P3.0 – P4.0mm | 6 metres and beyond | Tall atriums, double-height lobbies, large open reception halls |
Our detailed breakdown of pixel pitch selection for SMD and LED screens covers how this decision is made for any indoor deployment, and it applies directly to lobby projects.
2. Size and Aspect Ratio That Fit the Wall, Not Just the Budget
A video wall sized purely to fit whatever budget is left over after other office renovations usually looks like an afterthought. The stronger approach starts with the wall itself: its width, its height, any nearby doors or reception furniture, and the ceiling height above it. An oversized screen in a low-ceilinged lobby feels cramped; an undersized one on a large wall looks like a missed opportunity. Aspect ratio matters too — a wide, low-height format suits a reception desk backdrop, while a taller format can work well flanking an entrance or elevator lobby.
3. Brightness and Colour Calibrated for Real Lobby Light
Lobbies are rarely lit like a showroom demo. Glass entrances, skylights and directional daylight change throughout the day, and a wall that looked perfect during a vendor demonstration can wash out by mid-afternoon if brightness was not specified for the room’s actual light levels. Getting this right means measuring the lobby’s lighting conditions rather than assuming a standard indoor brightness figure will do, and calibrating colour so brand colours read accurately rather than shifting warm or cool under the building’s ambient lighting.
4. Content Management the Team Will Actually Use
An indoor LED video wall is only as impressive as the content running on it, and content that never changes quietly becomes wallpaper. A lobby wall earns its place when marketing or front-desk staff can update it themselves — swapping in a new campaign, a company milestone, a client welcome message, or live data — without calling a technician every time. This is a software and workflow decision as much as a hardware one, and it deserves the same planning attention as the screen specification itself.
What a Well-Executed Lobby Video Wall Actually Delivers
A Brand Statement Before Anyone Speaks
Visitors form an impression of a company within seconds of walking in, and a sharp, well-calibrated indoor LED video wall communicates investment, modernity and attention to detail in a way that a printed banner or a static poster cannot match. This is one of the clearest, most consistently cited reasons Pakistani corporate offices choose to install one in the first place.
A Flexible Canvas, Not a Fixed Sign
Unlike a printed lobby feature wall, a digital one can carry different messages through the day or the year — a welcome message for a scheduled client visit in the morning, company achievements during the afternoon, and a recruitment message during interview season — all from the same physical installation.
A Reference Point for Broader Corporate AV Planning
Lobby video walls rarely exist in isolation. They often sit alongside boardroom displays, meeting room screens and reception signage as part of a company’s broader corporate AV footprint, and specifying the lobby wall well tends to set the visual standard the rest of the office is measured against.
Lessons From Real Corporate Installations in Pakistan
Smart One Technologies has delivered indoor LED video wall projects across a range of corporate and institutional settings in Pakistan, and the specification principles above are drawn directly from that experience rather than written in the abstract.
- Thermosole Industries, Lahore: this indoor SMD video wall installation shows how a corporate video wall reshapes internal communication and visitor experience together, not just one or the other.
- PAK ARMY HQ 34 DIV: this indoor SMD video wall project illustrates how institutional clients specify for reliability and long-term structural stability, priorities that carry over to any serious corporate deployment.
- Forest Department, Abbottabad: this installation demonstrates multi-source input planning, letting staff switch cleanly between laptops, data platforms and video conferencing on one screen — a workflow consideration just as relevant to a corporate lobby that also serves as a meeting or briefing space.
These projects differ in size, sector and purpose, but the underlying discipline is the same: assess the room, specify the pixel pitch and size to the actual space, plan content and control from day one, and engineer the mounting properly rather than treating it as an afterthought.
How Smart One Technologies Approaches a Lobby Video Wall Project
- Site assessment — measuring the wall, ceiling height, ambient light levels, and typical viewer distance in the actual lobby.
- Pixel pitch and size selection — matching resolution to viewing distance and the wall’s real dimensions rather than a standard off-the-shelf size.
- Structural and electrical planning — engineering the mounting frame and power supply for the specific wall material and load.
- Content and control system setup — configuring a content management platform the client’s own team can operate.
- Calibration for the room’s lighting — adjusting brightness and colour to the lobby’s actual daylight and artificial lighting conditions.
- Testing and staff handover — confirming performance under real conditions and training the team that will manage content day to day.
Where an Indoor LED Video Wall Fits Among Other Display Options
Not every reception area needs the same category of screen. Our overview of reliable SMD display solutions for commercial use in Pakistan outlines how medium-format indoor or semi-outdoor displays, commonly used in malls, restaurants, banks and corporate lobbies, differ from the finer-pitch panels suited to close-range executive spaces, while our broader look at full-color SMD screens for real-time content display covers why a reception lobby video wall communicates something a printed display simply cannot. For companies weighing this investment against other formats, our guide to custom SMD screen solutions for every industry in Pakistan compares corporate use cases against retail, healthcare and hospitality deployments.
Common Mistakes in Corporate Lobby Video Wall Projects
- Choosing pixel pitch for the budget instead of the viewing distance: a coarse pitch on a close-range lobby wall looks unfinished no matter how large or bright it is.
- Skipping a real lighting assessment: brightness specified for a dim showroom often fails against actual daylight streaming through lobby glass.
- Sizing the screen to available wall space alone: without considering ceiling height and sightlines, even a correctly sized screen can feel out of proportion.
- No plan for who updates content: a lobby wall that nobody refreshes quickly becomes visual noise rather than a brand asset.
- Treating mounting as a minor detail: a lobby wall is a long-term architectural feature, and it deserves proper structural planning, not a quick bracket installation.
Why Corporate Clients in Lahore Choose Smart One Technologies
Smart One Technologies has planned and delivered indoor LED video wall installations for corporate lobbies, boardrooms and institutional reception areas across Lahore and the rest of Pakistan, applying the same site assessment, pixel pitch selection, structural engineering and content system setup covered in this article to every project. Explore our full range of indoor and outdoor SMD screens to compare panel options suited to different lobby sizes and budgets, or get in touch for a site assessment before finalising your project.
Frequently Asked Questions
What pixel pitch is best for a corporate lobby video wall?
It depends on typical viewing distance, but most corporate lobbies fall in the P1.5 to P2.5mm range, since staff and visitors usually stand within a few metres of the display.
How much does an indoor LED video wall for a lobby cost in Pakistan?
Cost depends on screen size, pixel pitch, structural mounting complexity and the content management system chosen, so a proper quotation follows a site assessment rather than a flat figure.
Can a lobby video wall handle bright daylight near glass entrances?
Yes, if brightness and calibration are specified for the room’s actual lighting conditions during the design stage rather than assumed from a standard indoor brightness figure.
Who updates the content on a corporate lobby video wall?
With a properly configured content management system, a company’s own marketing or front-desk staff can typically update content themselves without needing a technician for routine changes.
Is an indoor LED video wall different from an SMD screen?
In corporate and commercial use, the two terms largely overlap. SMD LED technology is the display technology used to build most modern indoor LED video walls.
Who installs indoor LED video walls for corporate lobbies in Lahore?
Businesses typically work with an established integrator such as Smart One Technologies, which handles site assessment, panel specification, structural mounting and content system setup as one coordinated project.
Final Thoughts
An indoor LED video wall earns its place in a corporate lobby when it is specified around the room it will actually live in, not around a generic recommendation. Pixel pitch matched to real viewing distance, size proportioned to the wall and ceiling, brightness calibrated for the lobby’s true lighting, and content the client’s own team can manage — these four decisions, made properly, are what turn an expensive screen purchase into a genuine brand asset that visitors notice the moment they walk through the door.
