When it comes to large-scale digital display solutions in Pakistan, few projects carry the same level of prestige and technical demand as an installation inside an active Pakistan Air Force (PAF) base. In early 2026, Smart One Technologies proudly completed the installation of a high-resolution P3 Outdoor SMD Screen at PAF Base Mushaf in Sargodha — one of the most strategically significant airbases in the country.
This project was not just about mounting an LED screen. It was about delivering a display solution that matches the precision, discipline, and excellence that PAF Base Mushaf stands for. From initial site surveys to final commissioning, every step was executed with military-grade attention to detail.
In this article, we walk you through the complete project story — the technical specifications, the challenges faced, the solutions deployed, and why Smart One Technologies remains the most trusted name for outdoor SMD screen installations across Pakistan.
About PAF Base Mushaf, Sargodha
PAF Base Mushaf, located in Sargodha, Punjab, is one of Pakistan’s premier air force installations. Named after the holy Quran (Mushaf), this base has been the home of some of the PAF’s most elite fighter squadrons and plays a critical operational role in the country’s air defence strategy.
The base is not only a military facility but also a venue for significant ceremonial events, parades, official briefings, and training programs. As such, the demand for modern, high-visibility digital signage and display infrastructure is very real and growing. A large-format outdoor SMD screen serves multiple purposes here — from displaying mission-critical information and event schedules to enhancing the visual impact of ceremonial occasions and public events hosted at the base.
Smart One Technologies was brought on board to fulfil this requirement with a solution that is durable, bright, and built to perform under the demanding environmental conditions of Sargodha’s climate.
Why P3 Outdoor SMD Technology Was Chosen
Choosing the right pixel pitch for an outdoor LED display is one of the most critical decisions in any large-scale screen project. For PAF Base Mushaf, the P3 outdoor SMD panel was selected after a thorough analysis of the viewing distances, ambient light conditions, and content-display requirements.
Understanding Pixel Pitch: Why P3?
Pixel pitch refers to the distance in millimetres between the centres of two adjacent LED pixels. A P3 screen has a 3mm pixel pitch, which strikes the ideal balance between visual clarity and structural durability for outdoor applications. At PAF Base Mushaf, the primary viewing distances ranged from 8 to 40 metres, making P3 the optimal choice for delivering sharp, readable content even under Sargodha’s intense afternoon sunlight.
Compared to larger pixel pitches like P6 or P8 which are common in highway billboards, P3 delivers far superior image resolution. This matters significantly when the screen needs to display text-heavy content, logos, live video feeds, or high-definition graphics for official events.
Brightness and Outdoor Readability
Outdoor SMD screens must battle against direct sunlight, dust, and heat. The P3 panels installed at PAF Base Mushaf deliver a peak brightness of over 6,500 nits, ensuring crystal-clear visibility even at noon in peak summer. The auto-brightness adjustment feature further optimizes power consumption without compromising visibility at different times of the day.
IP65 Weather Protection
Sargodha is known for its extreme summer heat and occasional dust storms. Every P3 cabinet installed on this project carries an IP65 ingress protection rating, meaning the electronics are fully protected against dust intrusion and water jets from any direction. This ensures long-term operational reliability with minimal maintenance requirements.
Project Specifications at a Glance
Below is a summary of the key technical parameters for this installation:
- Installation Location: PAF Base Mushaf, Sargodha, Punjab, Pakistan
- Screen Type: P3 Outdoor SMD LED Display
- Pixel Pitch: 3mm
- Panel Type: SMD 3-in-1 (RGB integrated in single chip)
- Peak Brightness: 6,500+ Nits
- Refresh Rate: ≥1,920 Hz (flicker-free for camera-friendly display)
- Colour Depth: 16-bit grayscale per channel
- Frame Material: Die-cast aluminium cabinets (lightweight, heat-dissipating)
- Cabinet Size: 500mm x 500mm modular units
- IP Rating: IP65 (full weather protection)
- Viewing Angle: 140° horizontal / 140° vertical
- Operating Temperature: -20°C to +60°C
- Control System: NovaStar / Cloud-based content management
- Power Consumption: Average 350W/m², Max 850W/m²
- Installation Year: 2026
The Installation Process: Step-by-Step
What sets Smart One Technologies apart is not just the quality of the screens we supply, but the rigour and professionalism of our installation methodology. Here’s how the PAF Base Mushaf project was executed from start to finish.
Phase 1 — Site Survey and Requirements Analysis
Before a single panel was shipped to Sargodha, our technical team conducted a comprehensive site survey at PAF Base Mushaf. This involved measuring the intended installation wall, assessing the structural integrity of the support surface, analyzing ambient light levels throughout the day, and confirming viewing angles and distances from the primary audience positions.
Working within a high-security military environment required additional coordination with base administration and security personnel. Our team completed all clearances and adapted our survey methodology to comply with the base’s operational protocols without disrupting day-to-day activities.
Phase 2 — Custom Steel Structure Fabrication
Since the P3 screen needed to be mounted on an outdoor wall at a specific height and angle, a custom galvanized steel mounting structure was designed and fabricated by our in-house engineering team. The structure was calculated to bear the load of the full LED cabinet assembly with a safety factor well beyond standard requirements, accounting for wind loads typical of Punjab’s climate.
The steel framework was pre-assembled and tested at our facility before being transported to Sargodha, minimizing on-site assembly time and ensuring quality control before installation day.
Phase 3 — Electrical Infrastructure Setup
A high-quality LED display is only as good as the power infrastructure behind it. Our electrical engineers designed a dedicated circuit for the P3 screen at PAF Base Mushaf, complete with voltage stabilizers, surge protection units, and an automatic changeover mechanism to maintain screen operation during brief power interruptions.
All cabling was routed through conduit and neatly concealed within the structure, maintaining the professional aesthetic expected at a facility of this stature. The electrical setup was fully compliant with Pakistan’s electrical safety standards.
Phase 4 — Panel Assembly and Screen Commissioning
The modular P3 cabinet panels were assembled on-site, with each 500mm x 500mm unit carefully connected and aligned to form a seamless display surface. Our technicians used precision tools to ensure that the LED modules were perfectly flush, eliminating any visible seams or dead zones across the active display area.
After physical assembly, the screen went through an intensive commissioning process: full white-balance calibration across all cabinets, colour uniformity testing, brightness uniformity correction using professional calibration software, and end-to-end functionality checks on the content management system.
Phase 5 — Content Management System Integration
The P3 screen at PAF Base Mushaf is controlled via a robust NovaStar-based control system that allows the base’s own IT and media team to manage content remotely. The system supports a wide range of content formats including Full HD video, static images, scrolling text, live camera feeds, and real-time data overlays.
We provided on-site training sessions for the base personnel responsible for operating the screen, ensuring they were fully comfortable managing day-to-day content updates independently.
Challenges Faced and How We Overcame Them
Challenge 1 — High-Security Environment Logistics
Delivering large-format LED panels and heavy steel structural components to an active military base requires extensive coordination with security and logistics personnel. Smart One Technologies worked proactively with the base administration to schedule deliveries during approved windows, ensuring all materials and personnel cleared security protocols without causing delays to the project timeline.
Challenge 2 — Extreme Summer Heat During Installation
The installation phase coincided with Sargodha’s intense summer season, with temperatures frequently exceeding 42°C. Our site team adapted working hours to early morning and late afternoon shifts, used appropriate protective equipment, and ensured all electronics were handled and stored within manufacturer-recommended temperature ranges to prevent any heat-related damage prior to installation.
Challenge 3 — Structural Wall Compatibility
During the site survey, we identified that the designated installation wall required additional anchor reinforcement to safely support the mounting structure. Our team coordinated with the base engineering department, and supplementary anchor points were installed using high-tensile chemical anchors, ensuring a structurally sound and permanent mounting solution.
Why Smart One Technologies Is the Right Partner for Your SMD Screen Project
At Smart One Technologies, we have been delivering premium LED display solutions across Pakistan for years. Our portfolio spans commercial, government, educational, and defence sector installations. Here is what makes us different:
End-to-End Project Management
We do not just sell screens. We take full ownership of your project from site survey to after-sales support. Our multidisciplinary team includes electrical engineers, structural engineers, LED display technicians, and content management specialists — everything you need under one roof.
Premium-Grade Hardware
Every LED panel we install uses Grade A LED chips from reputable manufacturers with proven track records for brightness consistency and lifespan. We source only from suppliers whose products pass our in-house quality inspection process before they reach any client site.
Nationwide Service Coverage
Whether your project is in Karachi, Lahore, Islamabad, Peshawar, Quetta, or Sargodha, our teams are equipped to reach you. Smart One Technologies has completed installations across every major city and numerous secondary cities in Pakistan, giving us unmatched logistical experience and ground-level knowledge.
After-Sales Support and Maintenance
Our relationship with clients does not end at commissioning. We offer structured annual maintenance contracts (AMC) for all our installations, covering routine inspections, module replacements, software updates, and emergency response services. For PAF Base Mushaf and all our defence sector clients, we provide prioritized support with guaranteed response times.
Competitive Pricing Without Compromise
We understand that budget discipline is important for every organization, including government and defence institutions. Smart One Technologies delivers industry-leading quality at pricing structures that are transparent, fair, and competitive. We never compromise on quality to cut costs — instead, we optimize our supply chain and project management efficiency to pass savings on to our clients.
Applications of P3 Outdoor SMD Screens Beyond Defence
The successful installation at PAF Base Mushaf is a testament to the versatility and ruggedness of P3 outdoor SMD technology. Here are some of the other application areas where this technology delivers exceptional value:
- Sports stadiums and arenas for real-time scoreboards and video replays
- Government and municipal buildings for public information displays
- Corporate headquarters and business parks for brand visibility
- Shopping malls and retail complexes for advertising and wayfinding
- Transportation hubs including airports, train stations, and bus terminals
- Educational institutions for outdoor event displays and campus communication
- Entertainment venues and concert grounds for live event coverage
- Hospitals and healthcare campuses for directional and informational signage
The Impact of This Installation

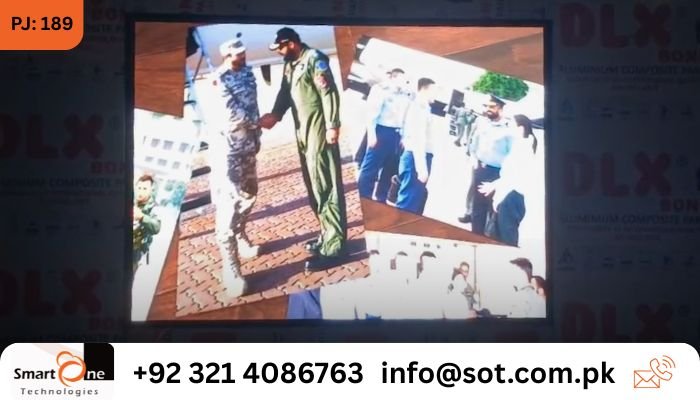

The P3 outdoor SMD screen at PAF Base Mushaf has already made a visible difference to how the base communicates and presents itself during official occasions. Events that previously relied on printed banners or small projection screens now benefit from a vivid, large-format display that commands attention and projects a modern, professional image befitting of Pakistan’s elite air force.
For Smart One Technologies, this project represents more than a completed installation. It is a reflection of our capability to operate at the highest levels of quality and sensitivity, delivering results that meet the exact expectations of one of Pakistan’s most respected institutions.
We are honoured to have contributed to the modernization of infrastructure at PAF Base Mushaf and look forward to supporting the Pakistan Air Force and other defence sector clients with future display technology projects.
Get Your Own Custom SMD Screen Installation
If you are looking for a reliable, experienced, and professional outdoor SMD screen supplier and installer in Pakistan, Smart One Technologies is ready to serve you. Whether you need a P3, P4, P5, or P6 outdoor LED display for your facility, event, or business, our team will design the perfect solution tailored to your requirements and budget.
Visit us at www.sot.com.pk or reach out to our sales team for a free consultation and site assessment. Let us bring your display vision to life with the quality and reliability that organizations like PAF Base Mushaf trust.
