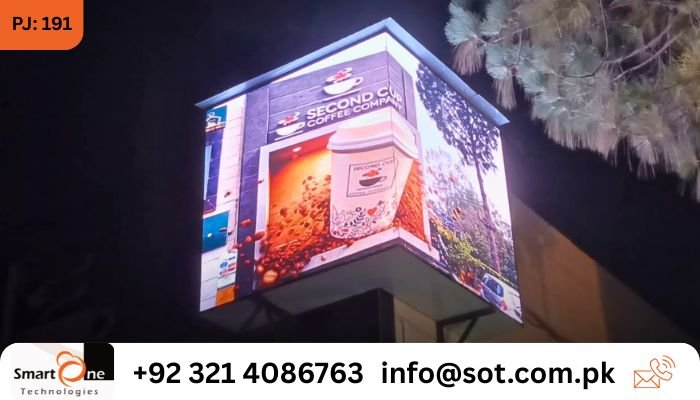

Outdoor 3D SMD Screen Installation at Second Cup Coffee, Lahore

Project Overview

When Second Cup Coffee approached Smart One Technologies with a vision to create a truly unmissable outdoor presence at their Lahore location, the brief was clear: it had to stop people in their tracks. Not just attract attention — actually make pedestrians pause, pull out their phones, and film what they were seeing. The result was the installation of Lahore’s first commercial outdoor 3D SMD screen for an international food and beverage brand — a project that set a new benchmark for experiential outdoor advertising in Pakistan.

The concept was built around anamorphic 3D LED technology — a display technique that uses precisely calibrated curved corner screen configurations to produce naked-eye three-dimensional visual illusions. When viewed from the street at the correct angle, content appears to leap off the screen surface, creating the impression of objects emerging from or crashing through the display. No special glasses. No augmented reality. Just spectacular physics of perception, executed in bright daylight on a high-traffic Lahore street.

Smart One Technologies managed this project from initial concept and structural engineering through outdoor 3D SMD screen procurement, anamorphic cabinet fabrication, installation, control system integration, and the production of the custom 3D video content that brings the display to life. This case study documents how the project was conceived, engineered, and delivered — and what it means for Pakistani brands looking to invest in next-generation outdoor advertising.

The Client Challenge — Standing Out in Lahore’s Competitive F&B Market

Second Cup Coffee operates in one of Pakistan’s most competitive commercial environments. The Lahore food and beverage market is intensely crowded with international and local coffee chains competing for the same demographic — young, urban, digitally connected professionals and students. In this environment, brand visibility at the physical location is not just important — it is a commercial necessity.

The client’s specific challenge was a location with significant pedestrian and vehicular traffic passing from multiple directions. A standard flat outdoor SMD screen — however large and bright — would only be visible from one direction. A corner location demanded a corner solution. And the client wanted more than visibility: they wanted a display that would generate organic social media content — video recorded by passersby that would amplify the brand’s reach far beyond the physical location.

These requirements pointed to a single technology solution: an outdoor 3D SMD screen with anamorphic corner cabinet configuration — the same technology that has generated millions of views for LED billboard installations in Tokyo, Seoul, Dubai, and New York. Smart One Technologies was tasked with bringing this world-class display technology to Lahore for the first time in a commercial F&B context.

What Is an Outdoor 3D SMD Screen? Technology Explained Simply

Before exploring how the Second Cup project was executed, it helps to understand what makes an outdoor 3D SMD screen fundamentally different from a conventional LED billboard. The term covers a specific combination of hardware design and content technique that, together, create the naked-eye 3D illusion.

The Hardware — Corner Cabinet Configuration

A standard flat outdoor SMD screen presents a single flat display face to viewers from one direction. An outdoor 3D SMD screen uses two display faces — a front face and a side face — meeting at a curved corner section. The two faces are controlled together as a unified display but fed carefully split and perspective-corrected content that maps different viewing angles of the same scene to each face.

The curved corner joint between the two faces is the critical engineering element. Rather than a harsh ninety-degree edge — which would break the illusion — the curved transition allows the anamorphic content to flow naturally across both faces, creating the perception of three-dimensional depth when viewed from the street at the optimal angle.

The Science — Anamorphic Perspective Illusion

The 3D effect is a form of anamorphic art — a technique with a history stretching back centuries in painting, adapted for LED display technology. Anamorphic 3D content is created by rendering a scene from a specific perspective that anticipates how the human eye will perceive the two faces of the outdoor 3D SMD screen as a unified three-dimensional space. When a viewer stands at or near the optimal viewing position, the brain interprets the carefully calculated visual on both faces as a single object existing in three-dimensional space — rather than two flat screens mounted at a corner.

The most dramatic 3D illusions are created when the content depicts objects that appear to emerge from or penetrate through the screen plane — a coffee cup overflowing onto the street, a coffee bean rolling off the edge, a wave of steam expanding outward from the display. These are precisely the kinds of branded content scenarios that Smart One Technologies‘s content production team developed for the Second Cup Coffee installation.

Technical Specifications — The Engineering Behind the Installation

Delivering a world-class outdoor 3D SMD screen installation requires engineering precision at every level. Here are the full technical specifications of the Second Cup Coffee Lahore installation:

Every specification in the table above was selected to serve a specific purpose — not as a default choice. Smart One Technologies‘ engineering team performed detailed site assessment, structural load calculations, wind load analysis, and viewing angle mapping before finalising the cabinet design and panel specifications for this outdoor 3D SMD screen project.

Installation Process — How Smart One Technologies Delivered the Project

Executing an outdoor 3D SMD screen installation is significantly more complex than a conventional flat LED billboard. Smart One Technologies followed a structured seven-phase project delivery methodology:

Phase 1 — Site Survey and Structural Assessment

The project began with a comprehensive site survey at the Second Cup Coffee Lahore location. Our engineering team assessed the building facade material and load capacity, existing electrical infrastructure, the precise corner geometry to calculate the optimal cabinet angle, ambient light conditions at different times of day, and primary pedestrian and vehicular approach directions to determine optimal 3D viewing angle placement.

Phase 2 — Anamorphic 3D SMD Screen Design

Using the site survey data, our design team produced detailed drawings of the outdoor 3D SMD screen cabinet configuration — showing the exact front face dimensions, side face dimensions, curved corner radius, total pixel map, and the precise viewing angle for which the anamorphic content would be calibrated. This design went through two rounds of client review and approval before fabrication began.

Phase 3 — Cabinet and Steel Structure Fabrication

The corner-configured LED cabinet housing was custom fabricated using structural steel rated for outdoor weather exposure. The mounting structure was designed to carry the full weight of the outdoor 3D SMD screen panels plus a wind load safety factor of 150 km/h — accounting for Lahore’s seasonal windstorms. All steel components were hot-dip galvanised for corrosion resistance before installation.

Phase 4 — Outdoor 3D SMD Screen Panel Installation

The P5 outdoor SMD panels were mounted onto the fabricated structure panel by panel — front face first, then the curved corner section, then the side face. Precise alignment between panels was critical: even a fraction of a millimetre misalignment at the corner joint would create a visible discontinuity in the anamorphic content. Smart One Technologies‘ installation team used laser alignment tools to achieve seamless cabinet-to-cabinet precision across the entire outdoor 3D SMD screen installation.

Phase 5 — Control System and Content Pipeline Setup

The Nova Star MSD300 sending card was configured to treat the two-face outdoor 3D SMD screen as a single unified canvas, with the correct pixel mapping that places each face’s content in the right spatial position for the anamorphic illusion. Content resolution mapping was tested extensively with calibration patterns before the final 3D video content was loaded. The control system was connected to the cloud CMS for remote content updates, allowing the client to push new 3D video content without on-site visits.

Phase 6 — Custom 3D Content Production

The anamorphic content for the outdoor 3D SMD screen was produced specifically for this installation’s dimensions and corner geometry. The creative concept centred on Second Cup Coffee’s signature products — steaming coffee cups appearing to rise from the screen surface, coffee beans cascading across the display plane, and branded liquid pour effects that play with the perception of depth and gravity. Each animation was rendered, mapped to the anamorphic template, and colour-calibrated for the specific brightness and colour profile of the installed panels.

Phase 7 — Testing, Quality Checks, and Client Handover

The completed outdoor 3D SMD screen installation was tested across a full 24-hour cycle — daytime brightness verification, nighttime brightness auto-reduction, content loop integrity, weather seal checks after a test water spray, and structural vibration testing. Client representatives were present for the final content preview and sign-off. Smart One Technologies provided a full handover dossier including structural certificates, IP test reports, warranty documentation, and CMS access credentials.

Brand Impact — What the Outdoor 3D SMD Screen Achieved for Second Cup

The commercial impact of an outdoor 3D SMD screen of this kind extends far beyond simple advertising visibility. Here is the documented and estimated brand impact of the Second Cup Coffee Lahore installation:

The organic social media amplification generated by the outdoor 3D SMD screen installation at Second Cup Coffee delivered brand impressions that would have cost many multiples of the hardware investment to achieve through paid digital advertising. This is the defining characteristic of landmark outdoor 3D SMD screen installations — they generate earned media value that compounds over time.

Outdoor 3D SMD Screen vs Standard LED Displays

For brands considering whether an outdoor 3D SMD screen investment is justified versus a standard flat LED billboard, here is a direct comparison:

The premium investment in an outdoor 3D SMD screen is justified for landmark locations, corner sites with multi-directional pedestrian flow, and brands seeking to create a talking-point installation that generates social media reach. For single-directional roadside applications, a standard high-brightness outdoor SMD screen may deliver better cost efficiency. Smart One Technologies helps every client make this decision with a clear-eyed commercial analysis before any hardware is specified.

Frequently Asked Questions

Q1: What is an outdoor 3D SMD screen?

An outdoor 3D SMD screen is a high-brightness LED display system configured with curved corner cabinets and anamorphic content to create naked-eye three-dimensional visual illusions visible from the street without special glasses. The illusion is created by displaying perspective-corrected content across two joined display faces — a front face and a side face — meeting at a curved corner.

Q2: Where was Pakistan’s first outdoor 3D SMD screen installed?

One of Pakistan’s first commercial-grade outdoor 3D SMD screens for an international F&B brand was installed at Second Cup Coffee in Lahore by Smart One Technologies (sot.com.pk). The installation uses P5 outdoor SMD panels in a corner configuration with anamorphic 3D content featuring Second Cup’s signature coffee products.

Q3: How much does an outdoor 3D SMD screen cost in Pakistan?

An outdoor 3D SMD screen installation in Pakistan typically costs 2–3× more than an equivalent-area flat outdoor LED display, due to the corner cabinet engineering, custom structural fabrication, and anamorphic content production. Contact Smart One Technologies at sot.com.pk for a free project consultation and detailed cost analysis for your specific location and requirements.

Q4: What content is needed for an outdoor 3D SMD screen?

An outdoor 3D SMD screen requires custom-produced anamorphic 3D video content — standard flat advertising videos will not create the 3D illusion. The content must be rendered with perspective split across the two display faces for the specific cabinet geometry of the installation. Smart One Technologies handles complete 3D content production as part of our outdoor 3D SMD screen installation packages.

Q5: Can any brand install an outdoor 3D SMD screen in Pakistan?

Yes. An outdoor 3D SMD screen is most effective for brands with corner or multi-directional locations, high pedestrian traffic, and a desire for social media-generating outdoor installations. Retail brands, F&B chains, hotels, showrooms, and commercial property developers are all strong candidates. Smart One Technologies assesses your specific location and brand objectives to determine whether an outdoor 3D SMD screen will deliver the commercial impact you are looking for.

Q6: Does Smart One Technologies deliver outdoor 3D SMD screen projects outside Lahore?

Yes. Smart One Technologies delivers outdoor 3D SMD screen installations across Pakistan — Karachi, Islamabad, Faisalabad, Multan, Sialkot, and other major cities. Every project includes site survey, structural engineering, panel installation, content production, and AMC support regardless of location.

Conclusion

The outdoor 3D SMD screen installation at Second Cup Coffee in Lahore is more than a single project — it is a signal of where Pakistani outdoor advertising is heading. In a market where brands are competing for increasingly fragmented attention, the ability to stop a person mid-stride, make them reach for their phone, and have them voluntarily broadcast your brand to their followers is not just impressive — it is a fundamentally different class of marketing return.

Smart One Technologies brought this world-class technology to Pakistan and delivered it to the standard of the best installations in Asia. We designed the display, engineered the structure, installed the hardware, built the content, and set up the system — a truly end-to-end project capability that no other LED display company in Pakistan currently offers for outdoor 3D SMD screen applications.

If your brand has a corner location, a high-traffic street, or a desire to create a display that people talk about — the next outdoor 3D SMD screen landmark in Pakistan could be yours. Visit www.sot.com.pk to schedule a project consultation with Smart One Technologies and discover what anamorphic 3D LED technology can do for your brand’s outdoor presence.
